Sim card tracking 3g obd 2 gps tracker track device for car

FOB Reference Price:Get Latest Price
US $50-60 / Pieces | 10 Piece/Pieces (Min. Order)
Screen Size:
no screen
Memory Capacity:
None
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Type:
Gps Tracker
Use:
Automotive
Function:
car gps tracker, Real time tracking, car engine code reading, driving behavoir analysis
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NYITECH
Model Number:
NT-183WE
Warranty:
1 Years
Product name:
tracking device for car
Size:
62mm*50mm*25mm
Weight:
100g
supported vehicle:
passenger, lorry, truck, van, fleet car
GSM Frequency:
850/900/1800/1900MHz
Working Voltage:
8-32VDC
Built in:
3 axis 50hz accelerator
Inner battery:
3.7V/100mAH
Positioning system:
GPS,QZSS,GLONASS,COMPASS,Galileow,A-GPS
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month track device for car
Packaging & Delivery
Packaging Details
track device for car
Small White Box : 94mm*74mm*50mm
Standard Configuration: USB Cable
The white box can be customized according to customer's request
Delivery time: sample ----3 to 5 days after payment
Bulk order---- 21 days after deposit
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(day) 2 30 To be negotiated

Sim card tracking 3g gps tracker track device for car

Product Description

Product Description



NT-183WE  is an OBD GPS dongle which provide positioning, tracking , car status checking and driving behavior analyzing function. With its plug and play design, the dongle can easily connect with OBD port to acquire real time data , such as car position, car mileage,car speed, engine RPM, car DTC, driving behavior data. And all these information will be upload via GSM/GPRS to server for further analysis, statistics , storage and more extensive application.



Technical Specification

Mechanical Parameter

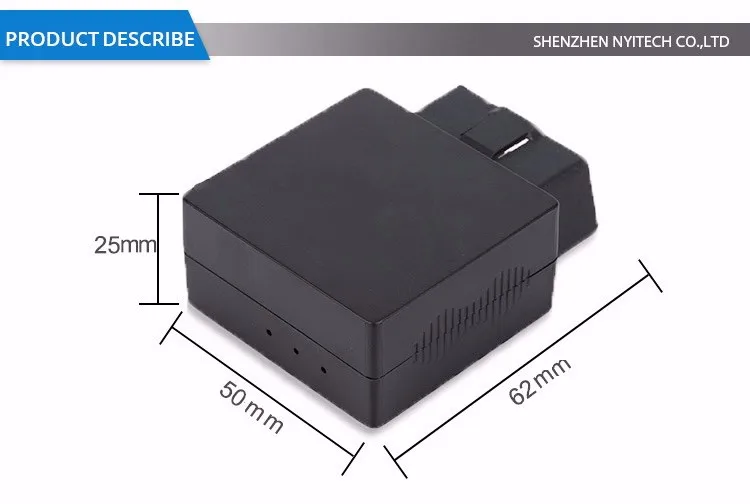

Dimension

62mm(Length) x 50mm(Width) x 25mm(Height)



Weight

100g

Interface

OBD interface: Support A/B Type

Configuration interface :Micro-USB

SOS Button interface:MMCX

Support Diagnostic Protocol

Passenger:ISO15031 and Dedicated protocol of Japanese vehicleTOYOTA,NISSAN,MAZDA,HONDA,MITSUBISHI,SUBARU,

SUZUKI,DAIHATSU) Commercial vehicle:J1939,J1708 and Dedicated protocol of MITSUBISHI,HINO,ISUZU



Power

Working Voltage

8-32VDC



Working current

Max:<120mA 13.8DC,<80mA 27.6VDC

Average( sleeping mode):<10mA 12/24VDC



Battery

3.7V/100mAH

Positioning system

GPS,QZSS,GLONASS,COMPASS,Galileow,A-GPS( Optional )

GPS Performance(GPS performance)

Receiver Channels:56

reacquisition Sensitivity:-160dBm

position accuracy:2.5m CEP

Cold Start:30s

Hot Start:1s

GLONASS Performance(GLONASS performance)

Receiver Channels:56

reacquisition Sensitivity:-156dBm

position accuracy:4.0m CEP

Cold Start:32s

Hot Start:1s

Actual Measurement 3D Positioning time

Cold Start:30s~120s

Hot Start:3s~15s

Mode of data transmission

TCP/SMS

GSM/GPRS

Working frequency HSPA 900/2100mHZ; GSM.GPRS 850/900/1800/1900MHz

3-axis accelerator

+/-16g

Storage

8M BYTE FLASH

Indication light

3G/GPS /OBD

Buzzer

System state/Alarm indication

Antenna

3G

Built-in



GPS

Built-in

Accessories optional

USB private wire,SOS extended cable

Enviromental Parameter

Operating Temperature

-30℃ ~ +70℃(Humidity 80%)



Humidity

5%~95%(No Frosting)

Sim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carSim card tracking 3g gps tracker tracking device for carNyitech Co., Ltd. Has a R&D team with over 10 years experience on vehicle electronics and communication industry, we’re aiming to provide a stable but super easy using OBD GPS products and solutions for fleet cooperation, vehicle-mounted electronic product, UBI or other relative companies worldwidely.

The OBD module developed by Nyitech, supporting all series Japanese original vehicle besides traditional standard OBDII vehicles. By testing on over 1500 different types of vehicles, the product has extreme advantage on the stability and compatibility comparing with any other OBD comp.Sim card tracking 3g gps tracker tracking device for carNyitech believe good technology shall bring great convenience to life. By keep digging further on our good at, we want to share our experience and products with more and more people, contributes to the environment and to our daily life.
