Bluetooth customization 4.1 12V to 24V obd heavy duty obd2 diagnostic car scanner

FOB Reference Price:Get Latest Price
US $18-22 / Pieces | 10 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 200 Pieces)
Customized packaging (Min. Order: 500 Pieces)
Report Suspicious Activity
Overview
Quick Details
Type:
Engine Analyzer
Voltage:
9-36V
Power:
12W
Certification:
CE FCC ROHS
Applicable Models:
all cars
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NYITECH
Model Number:
NT-161B
Warranty:
1 Years
Product Name:
Bluetooth4.1 OBD Scanner
Dimension:
48mm x 23mm x 43mm
weight:
28g
Working voltage:
9-36V
Working current:
<50mA 13.8DC,<30mA 27.6VDC
3-Axis accelerator:
+/-16g
Gyroscope sensor:
±2000°/s
Storage:
128MB
Working temperature:
-40℃ ~ +85℃(Humidity 80%)
Humidity:
5%~95%(No frosting)
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Bluetooth4.1 customization OBD2 Scanner
Packaging & Delivery
Packaging Details
Bluetooth4.1 customization OBD2 Scanner
Small White Box : 94mm*74mm*50mm
The white box can be customized according to customer's request
Delivery time: Sample----3 to 5 days after payment.
Bulk order----21 working days after deposit
Port
Shenzhen
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(day) 2 15 To be negotiated
Video Description

Bluetooth customization 4.1 12V to 24V obd heavy duty obd2 diagnostic car scanner

Product Description

Product Description



161B is a car data logger that can get the status of vehicle data and driving behavior data and output the recorded data to external Bluetooth device through Bluetooth. Among them, the vehicle data status includes important data such as odometer mileage, total driving hours, total fuel consumption, fuel level, vehicle speed, speed, coolant temperature, voltage, vehicle VIN code, fault code, ignition status, Based on the specific vehicle, Some of the data may not be available or will be able to obtain more data. Driving behavior data includes static or moving vehicles, rapid acceleration, rapid deceleration, sharp turns, trailers, collision trajectory and so on.



Production features:

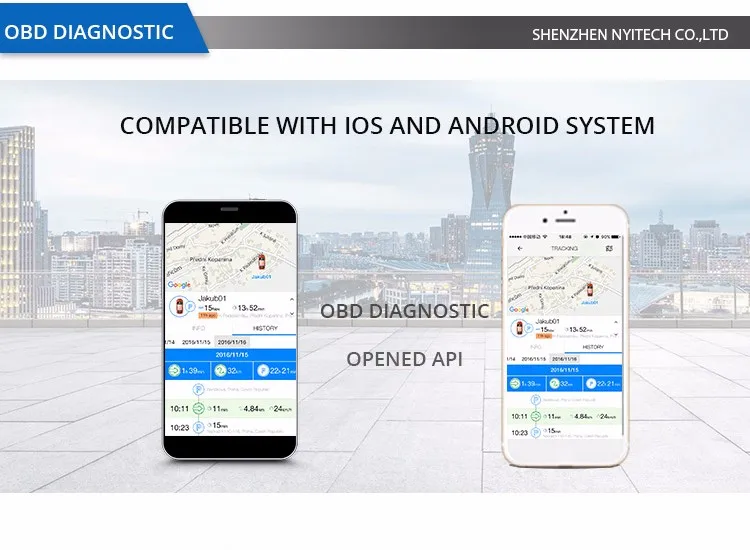

1.Remote car control by Smartphone or server, such as window open/close, emergency light on/off,Bluetooth 4.1, Supporting Android and Apple system, supporting simultaneous connection of multiple external Bluetooth devices.

2. Support acquiring car status data from CANBUS DirectlyCompatible with a variety of automotive diagnostic communication circuit, CAN1 (6 # 14 #), CAN2 (3 # 11 #), RS485, J1850, K-LINE.
3. Integrated 3-axis gyroscope and 3-axis accelerometer.
4.Mass storage 1GBit.
5.Software support secondary development.
6.Hardware configuration, appearance structure, software features are supported by custom.



Application:
ELD Solutions
Fleet management
software company
UBI

Car dealer

car rental





Technical Specification



Dimension

48mm(Length)*23mm(Width)*43mm(Height)

Weight

28g

Interface

OBD Interface: Support A/B Type

Working voltage

9-36VDC

Working current

Max working current:<50mA at13.8DC,<30mA at 27.6VDC

Average working current ( sleeping mode):<10mA at 12/24VDC

accelerometer and gyroscope

±16g and ±2000°/s

LED

OBD(green)/BT(blue)

Frequency

72MHz

Storage

1GBit

Built-in battery

3V / 5.5mAh rechargeable lithium button battery

Bluetooth

Bluetooth 4.1 + EDR dual-mode module, based on Cypress BCM20707; one to many connections, each connected to a stable speed <2K / S; transmission distance: 0cm ~ 10m

Working temperature

-40℃ ~ +85℃(Humidity 80%)


1_02.jpg1_04.jpgNyitech Co., Ltd. Has a R&D team with over 10 years experience on vehicle electronics and communication industry, we’re aiming to provide a stable but super easy using OBD GPS products and solutions for fleet cooperation, vehicle-mounted electronic product, UBI or other relative companies worldwidely.

The OBD module developed by Nyitech, supporting all series Japanese original vehicle besides traditional standard OBDII vehicles. By testing on over 1500 different types of vehicles, the product has extreme advantage on the stability and compatibility comparing with any other OBD comp.1_05.jpgNyitech believe good technology shall bring great convenience to life. By keep digging further on our good at, we want to share our experience and products with more and more people, contributes to the environment and to our daily life.
